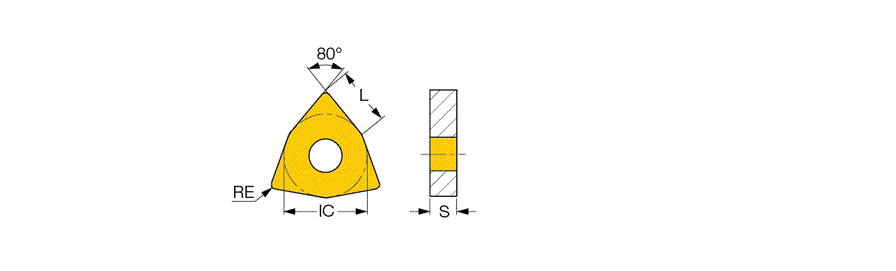

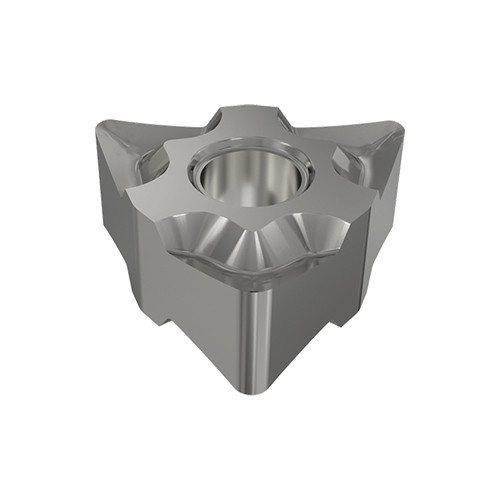

WNGG 332-F3N-P IC20
Turning Insert; 60 Triangle ; 0.257″ Length × 3/8″ IC × 0.0315″ Corner Radius ; IC20 ; Carbide ; Uncoated
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.031″ |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | WNGG | Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.01574 ″/rev |
| Insert Size | 332 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.257″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Trigon, double-sided positive-radial sharp-edged and very positive and polished rake inserts. Used for finishing aluminum and other non-ferrous materials. Soft cut and low cutting forces eliminate built-up edge. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.013
