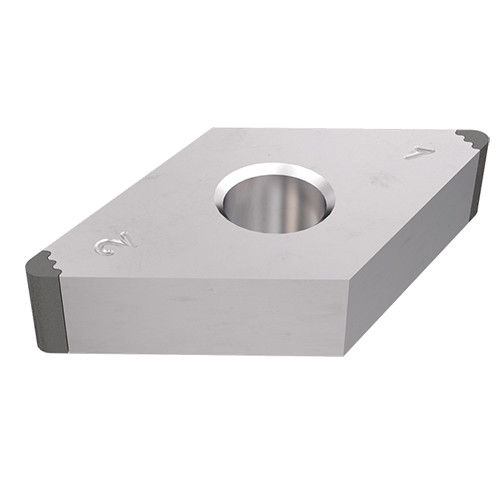

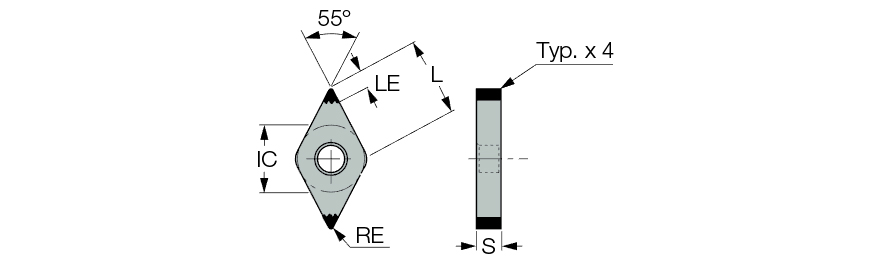

DNGA 432-R4-J IB22HC
Turning Insert; 60 Triangle ; 0.61″ Length × 1/2″ IC × 0.0315″ Corner Radius ; IB22HC
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.005″ |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Depth of Cut Maximum (APMX) | 0.031″ |
| Insert Style | DNGA | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Size | 432 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 0.61″ | Quantity | 10 |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | 60° Triangle |
| Insert Included Angle (EPSR) | 60 Degrees | Series/List # | ISOI |
| Grade | IB22HC | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Model No | 8866423 |
| Tool Type | Turn Ultra hard Inserts |
Product Features
| Family Description | 55° rhombic 4-cornered CBN inserts for machining hardened steel. | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.006
