VCMT 160408-F3M IC807

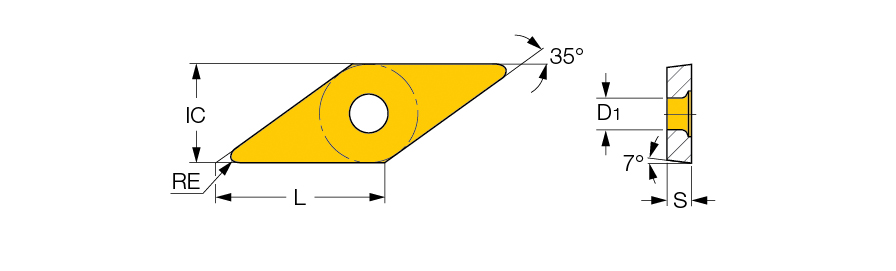

Turning Insert; 60 Triangle ; 16.6 mm Length × 9.52 mm IC × 0.8 mm Corner Radius ; IC807 ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.13 mm |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 93° Approach | Int. 35° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 1.8 mm |
| Insert Style | VCMT | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Corner Radius (RE) | 0.8 mm | Max. Turning Feed (ft(max)) | 0.28 mm/rev |
| Insert Size | 332-F3 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 16.6 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | F3M |
| Inscribed Circle Diameter (IC) | 9.52 mm | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiAlN+TiN | Series/List # | ISOI |
| Grade | IC807 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 4.5 mm | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | 35° rhombic positive flank inserts, for stainless steel finishing applications. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info |
Shipping Info
Package Weight
0.124
