DCMT 13T512-M3M-SL IC6025
Turning Insert; 60 Triangle ; 0.528″ Length × 0.433″ IC × 0.0472″ Corner Radius ; IC6025 ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Stainless Steel | | Tool Type | Turn Positive Inserts |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | Y Axis Variable Approach angle | | Min D.O.C. | 0.035″ |

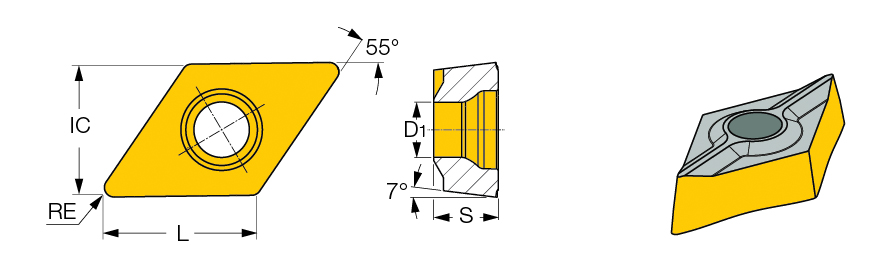

| Insert Style | DCMT | Depth of Cut Maximum (APMX) | 0.138″ |
| Corner Radius (RE) | 0.0472″ | Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Insert Size | 13T | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Cutting Edge Length (L) | 0.528″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.201″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 0.433″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiCN+Al2O3+TiN | Series/List # | ISOI |
| Grade | IC6025 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.177″ | Model No | 8866423 |
Product Features
| Family Description | 55° rhombic positive flank inserts, first choice for machining stainless and low carbon steel. A ridge at the insert bottom which fits onto a long groove on the tool's seat ensures high edge location precision. | Country of Origin | Israel |
Shipping Info
Package Weight
0.021
