TBGT1.21X0L-FF TT9020

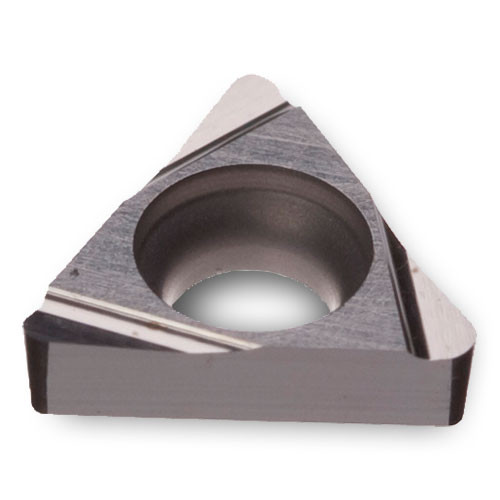

Turning Insert; 60 Triangle ; 0.27″ Length × 0.156″ IC × 0.001″ Corner Radius ; TT9020 ; Carbide ; TiCN
| Insert Style | TBGT | Depth of Cut Maximum (APMX) | 0.012″ |
| Corner Radius (RE) | 0.001″ | Min. Turning Feed (ft(min)) | 0.001″ |
| Insert Size | 1.21 | Max. Turning Feed (ft(max)) | 0.004″ |
| Cutting Edge Length (L) | 0.27″ | Clearance Angle Major (AN) | 5 Degrees |
| Insert Thickness (S) | 0.094″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 0.156″ | Cutting Direction (HAND) | Left Hand |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN | Shape | 60° Triangle |
| Grade | TT9020 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.09″ | Body Material | Carbide |
| Min D.O.C. | 0.002″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.003
