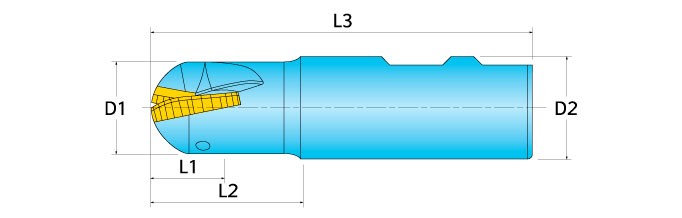

1BW7X-1205081R01
Indexable End Mill; 1-1/4″ Dia. × 1-1/4″ Shank Dia. × 7-1/4″ OAL × 0.63″ LU
| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 5″ |
| Cutting Diameter (DC) | 1-1/4″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 0.63″ |
| Depth of Cut Maximum (APMX) | 13 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 7-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Master Insert Identification (MIID) | (2)NNET31 | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Max. Depth of Cut: Full Radius Insert Corner: .250″ to 1.00″R | Country of Origin | Germany |
Shipping Info
Package Weight
2.2
