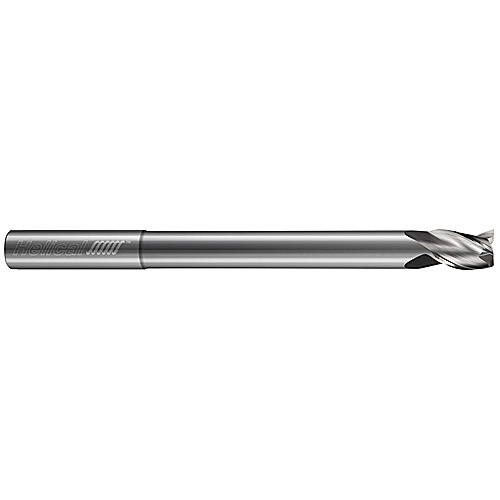

H35AL-RN-R-31000
SQ End Mill; 1″ Dia. × 1-1/4″ LOC × 1″ Shank Dia. × 5″ OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Neck Diameter (DN) | 0.95″ |
| Overall Length (OAL) | 5″ | Neck Length (LN) | 1-3/8″ |
| Cutting Edge Material | Carbide | Length Group | 1D |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Shank Length (LS) | 2.375″ |
| Flute Helix Angle (FHA) | 35 Degrees | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.55
