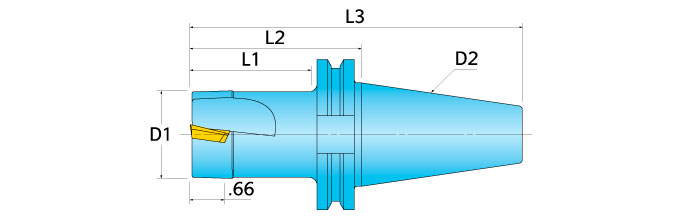

12J1E-1202829R01 CUTTER B
| Cutting Diameter (DC/DCX) | 1-1/4″ | Weight of Item (WT) | 0.73 Kg |
| Cutting Diameter (DC) | 1-1/4″ | Head Length (LH) | 2.87″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 13 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 5.56″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | #40 | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Cutting Edge Length: .66″ (slabbing) .54″ (channeling) Insert Corner: .031″, .062″, .093″, .125″R, .187″ and .250″R | Country of Origin | USA |
