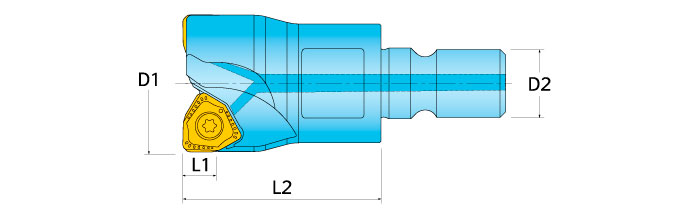

1DJ1F025035X7R00
Indexable End Mill; 25″ Dia.
| Cutting Diameter (DC/DCX) | 25″ | Weight of Item (WT) | 0.73 Kg |
| Cutting Diameter (DC) | 25″ | Head Length (LH) | 35″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 13 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | M12 | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Cutting Edge Length: .244 Insert Corner: .015, .020, .031, .039, .062 R | Country of Origin | Germany |
Shipping Info
Package Weight
0.207
