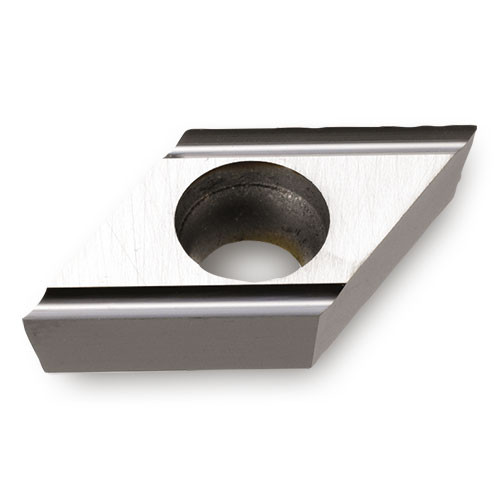

DCET32.51R-GF TT9080
Turning Insert; 60 Triangle ; 0.457″ Length × 3/8″ IC × 0.016″ Corner Radius ; TT9080 ; Carbide ; TiAlN+TiN
| Insert Style | DCET | Depth of Cut Maximum (APMX) | 0.1″ |
| Corner Radius (RE) | 0.016″ | Min. Turning Feed (ft(min)) | 0.002″ |
| Insert Size | 32.51 | Max. Turning Feed (ft(max)) | 0.008″ |
| Cutting Edge Length (L) | 0.457″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.156″ | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Included Angle (EPSR) | 55 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Shape | 60° Triangle |
| Grade | TT9080 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
| Min D.O.C. | 0.012″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
