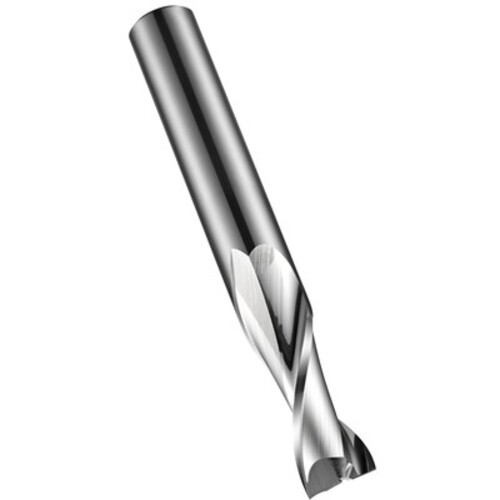

Dormer HM Polished DIN 6535 HA Shank End Mill W Standard Series S610 E-code # S6104.0XD4
SQ End Mill; 4 mm Dia. × 12 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; Polished ; Series S610
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 4 mm | Coating | Polished |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 12 mm | Series/List # | S610 |
| Overall Length (OAL) | 50 mm | Corner Radius (RE) / Chamfer Width (CHW) | 0.1 mm |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | E-code # S6104.0XD4 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.19
