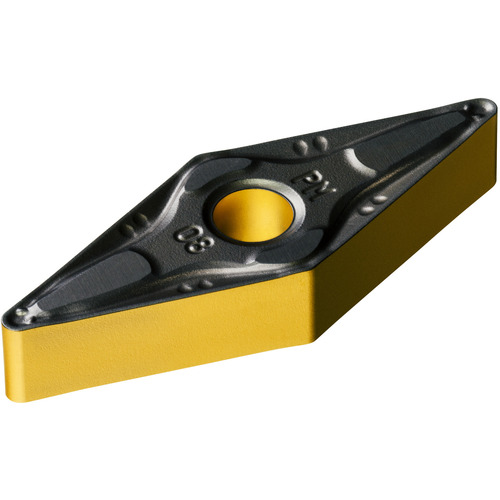

VNMG333PM 4335 T-MAX P INSERT
Turning Insert; 35 Diamond ; 15.4063 mm Length × 3/8″ IC × 0.047″ Corner Radius ; 4335 ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Steel | | Grade | 4335 |
| Insert Style | VNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.047″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 333 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 15.4063 mm | Chip Breaker Type | PM |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 35° Diamond |
| Coating | | Al2O3 | TiN | TiCN | | Model No | VNMG333-PM |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
.240
