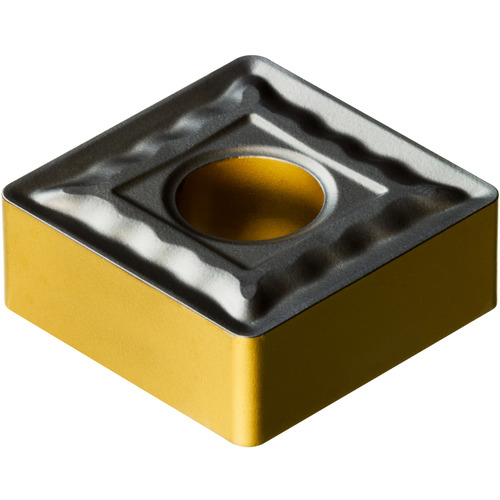

SNMG 432 QM 4335, 0.032″ Corner Radius, 0.187″ Thick, 1/2″ Inscribed Circle, TiCN|Al2O3|TiN, Square, Turning Indexable Insert
Turning Insert; Square ; 11.9 mm Length × 1/2″ IC × 0.032″ Corner Radius ; 4335 ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 20 %
| Applicable Material | | Steel | | Fixing Hole Diameter (D1) | 0.203″ |
| Insert Style | SNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.032″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 432 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 11.9 mm | Chip Breaker Type | QM |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | | Al2O3 | TiN | TiCN | | Series/List # | SNMG 432-QM |
| Grade | 4335 | Model No | SNMG432-QM |
Product Features
| Country of Origin | India |
Shipping Info
Package Length
5.25000
Package Width
2.25000
Package Height
.50000
Package Weight
0.216
