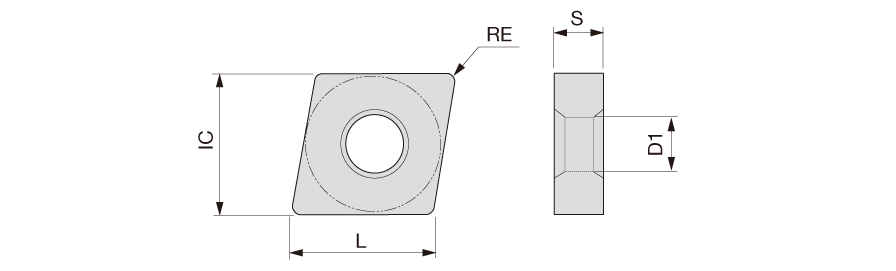

CNMG120416-33 T9115
Turning Insert; 60 Triangle ; 12.9 mm Length × 12.7 mm IC × 1.6 mm Corner Radius ; T9115 ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | Steel | | Min D.O.C. | 1 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 4 mm |
| Insert Style | CNMG | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Corner Radius (RE) | 1.6 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Insert Size | 120416 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 12.9 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | 33 |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Shape | 60° Triangle |
| Grade | T9115 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 5.16 mm | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Negative relief ang., M class, 80deg rhombic insert, for medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.009
