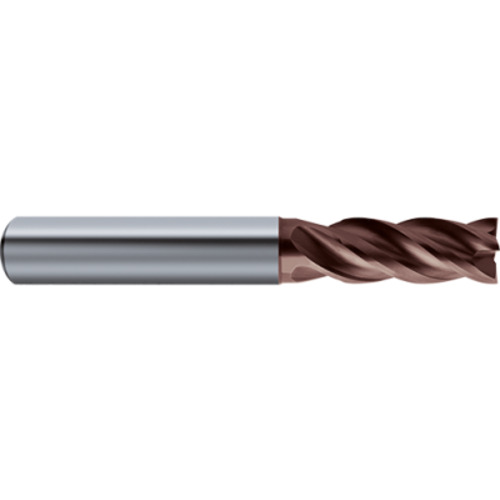

1/2 DIVER END MILL
SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3-1/2″ OAL ; 0.005″ RE ; 0.005″ RE ; 4 FL ; Carbide ; AlTiCrSiN ; Series 6757
Additional Tariff Surcharge of 6.6 %
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Chamfer |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.005″ |
| Depth of Cut Maximum (APMX) | 1″ | Corner Chamfer Width (CHW) | 0.005″ |
| Overall Length (OAL) | 3-1/2″ | Length Group | Standard |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.500″ |
| Coating | AlTiCrSiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 6757 |
| Flute Helix Angle (FHA) | Variable | Corner Radius (RE) / Chamfer Width (CHW) | 0.005″ |
Product Features
| Remarks | •nano-Siﾮ coating •Variable helix •Face geometry for drilling and ramping •Plunge angle up to 45ﾰ •High feed rate for plunging and slotting •High metal removal rate •Up to 100% increased cutting speed in steel •Good for use with aluminum, alloyed steels, free cutting steels, tool steels, stainless steels, titanium and titanium alloys, cast iron, special alloys | Country of Origin | Germany |
Shipping Info
Package Length
4.50000
Package Width
.50000
Package Weight
0.328
