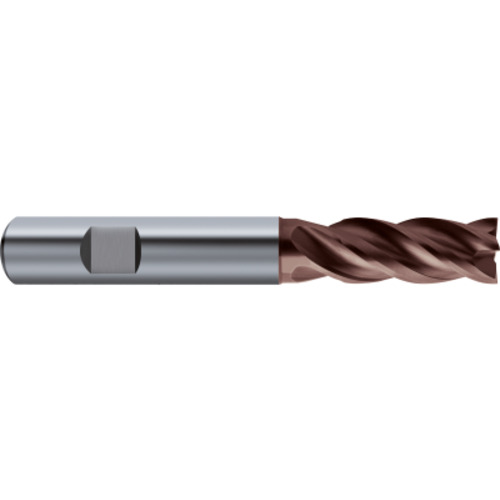

12MM RF100 DIVER END MILL NANO-SI
SQ End Mill; 12 mm Dia. × 26 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 4 FL ; Carbide ; nano-Si
Additional Tariff Surcharge of 6.6 %
| Cutting Diameter (DC) | 12 mm | Flute Helix Angle (FHA) | 36 Degrees | 37 Degrees | 38 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 26 mm | Corner Chamfer Width (CHW) | 0.12 mm |
| Overall Length (OAL) | 83 mm | Neck Diameter (DN) | 11.5 mm |
| Cutting Edge Material | Carbide | Neck Length (LN) | 36 mm |
| Coating | AlTiCrSiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.2000
