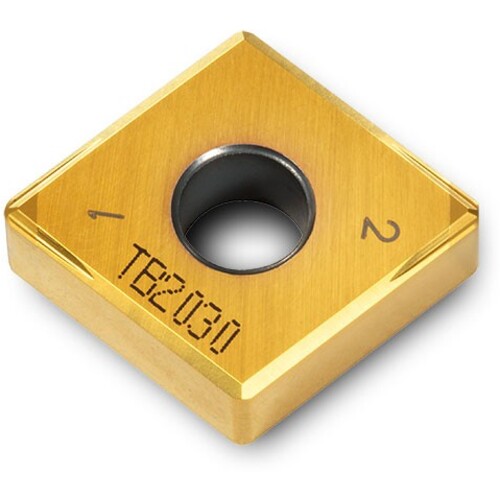

CNGM433CF-LS2 TB2030
Turning Insert; 60 Triangle ; 0.508″ Length × 1/2″ IC × 0.047″ Corner Radius ; TB2030 ; PCBN
| Insert Style | CNGM | Number of Cutting Edges | 2 |
| Corner Radius (RE) | 0.047″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 433 | Quantity | 10 |
| Cutting Edge Length (L) | 0.508″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.187″ | Shape | 60° Triangle |
| Inscribed Circle Diameter (IC) | 1/2″ | Series/List # | ISOI |
| Insert Included Angle (EPSR) | 80 Degrees | Body Material | Carbide |
| Cutting Edge Material | PCBN | Cutting Edge Effective Length (LE) | 0.094″ |
| Grade | TB2030 | Model No | 8866423 |
| Fixing Hole Diameter (D1) | 0.203″ |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.026
