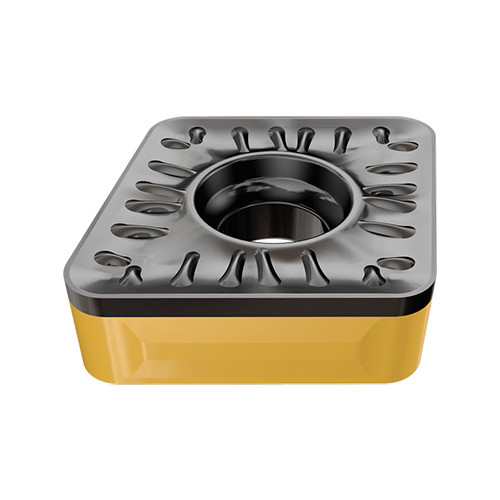

COMM 646-R3P-IQ IC8150

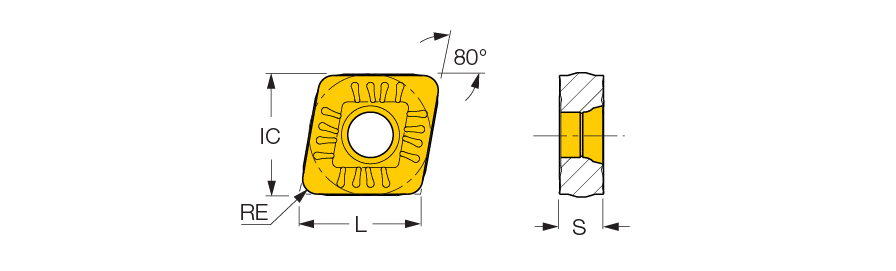

Turning Insert; 80 Rhombic ; 0.761″ Length × 3/4″ IC × 0.0945″ Corner Radius ; IC8150 ; Carbide ; TiCN+Al2O3+TiCN+TiN
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.138″ |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.472″ |
| Insert Style | COMM | Min. Turning Feed (ft(min)) | 0.01377 ″/rev |
| Corner Radius (RE) | 0.0945″ | Max. Turning Feed (ft(max)) | 0.04724 ″/rev |
| Insert Size | 646 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.761″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/4″ | Chip Breaker Type | R3P |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiCN+TiN | Shape | 80° Rhombic |
| Grade | IC8150 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.272″ | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Single-sided 7° negative side flank 80° rhombic inserts for heavy turning of steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.067
