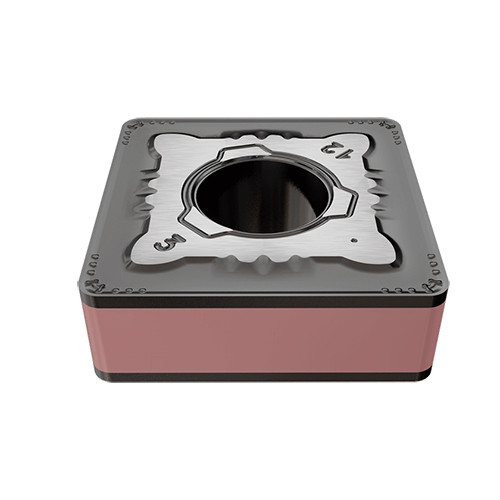

SNMG 644-R3M IC806
Turning Insert; Square ; 3/4″ Length × 3/4″ IC × 0.063″ Corner Radius ; IC806 ; Carbide ; AlTiN "SUMO TEC"
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Min D.O.C. | 0.079″ |

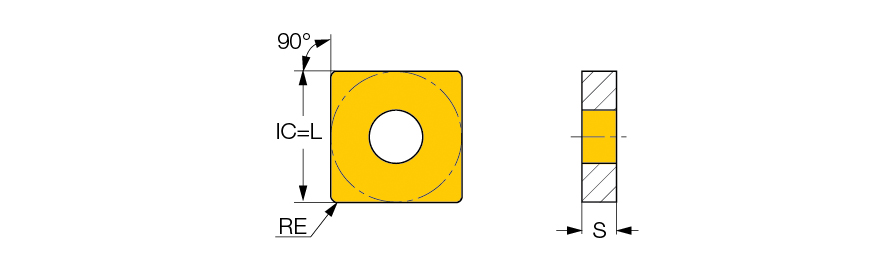

| Insert Style | SNMG | Depth of Cut Maximum (APMX) | 0.433″ |
| Corner Radius (RE) | 0.063″ | Min. Turning Feed (ft(min)) | 0.01181 ″/rev |
| Insert Size | 644 | Max. Turning Feed (ft(max)) | 0.03543 ″/rev |
| Cutting Edge Length (L) | 3/4″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/4″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/4″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | AlTiN "SUMO TEC" | Body Material | Carbide |
| Grade | IC806 | Model No | 8866423 |
| Fixing Hole Diameter (D1) | 0.313″ |
Product Features
| Family Description | Double-sided 90° square inserts, first choice for rough machining on stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.019
