CCGW 32.52SF-2MT IB20HC
Turning Insert; 80 Rhombic ; 0.382″ Length × 3/8″ IC × 0.0315″ Corner Radius ; IB20HC ; PCBN ; TiN
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Ext. 80° Diamond 91° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | ITSBORE System | | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Style | CCGW | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |

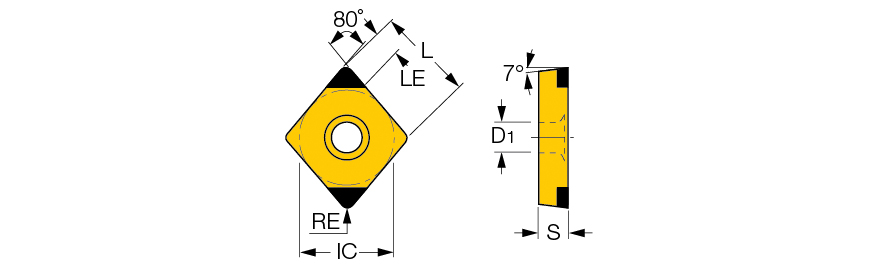

| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.00787 ″/rev |
| Insert Size | 32. | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.382″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | F |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Coating | TiN | Shape | 80° Rhombic |
| Grade | IB20HC | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features
| Family Description | 80° positive rhombic inserts with 2 CBN tips for machining hardened steel, sintered metals and high temperature alloys. | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.022
