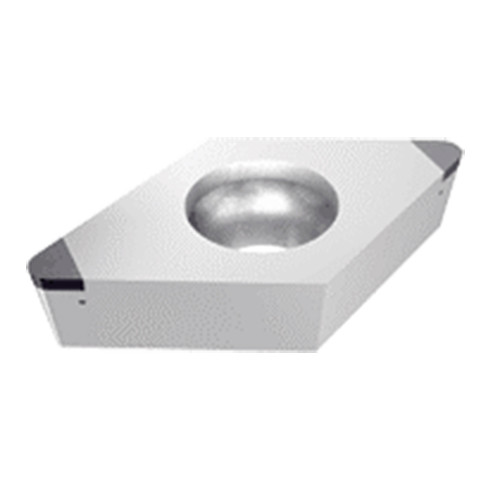

DCGW 21.50.5S-2MT IB10HC

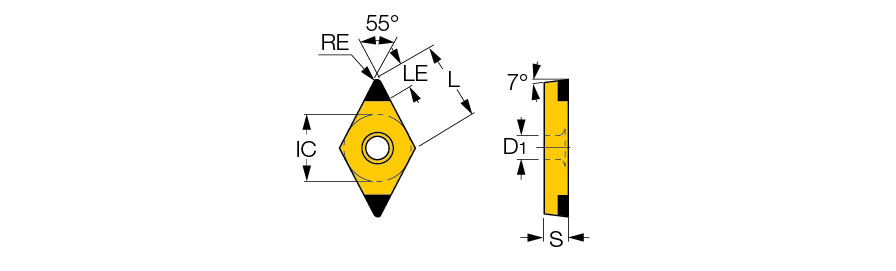

Turning Insert; 55 Rhombic ; 0.303″ Length × 1/4″ IC × 0.0079″ Corner Radius ; IB10HC ; PCBN ; TiN
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Style | DCGW | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Corner Radius (RE) | 0.0079″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Size | 21. | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.303″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.094″ | Chip Breaker Type | M |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | PCBN | Shape | 55° Rhombic |
| Coating | TiN | Series/List # | ISOI |
| Grade | IB10HC | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | 55° positive rhombic inserts with 2 CBN tips for machining hardened steel, sintered metals and high temperature alloys. | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.011
