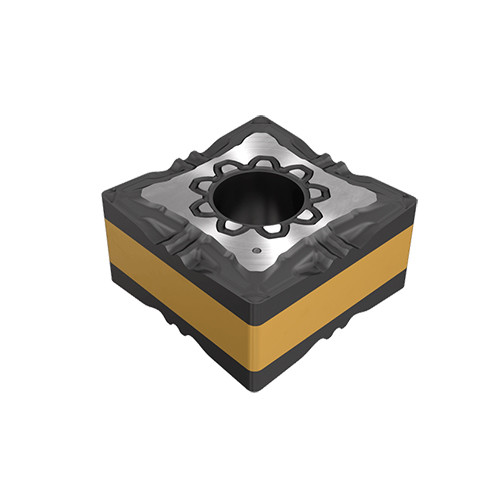

SNMG 433-F3P IC807
Turning Insert; Square ; 1/2″ Length × 1/2″ IC × 0.0472″ Corner Radius ; IC807 ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.035″ |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Depth of Cut Maximum (APMX) | 0.138″ |
| Insert Style | SNMG | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |

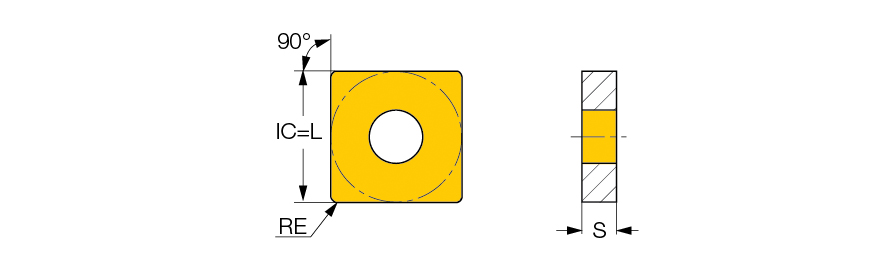

| Corner Radius (RE) | 0.0472″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Size | 433 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 1/2″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | F3P |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | TiAlN+TiN | Series/List # | ISOI |
| Grade | IC807 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided square inserts, for semi-finishing and finishing on steel. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.023
