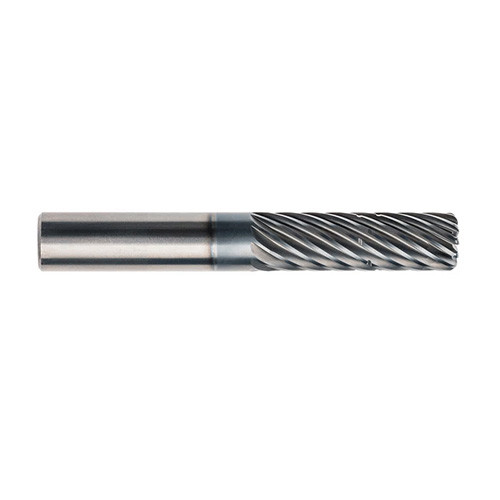

20X20X70X135 ALCRNX
SQ End Mill; 0.787″ Dia. × 2.7559″ LOC × 0.787″ Shank Dia. × 5.315″ OAL ; 11 FL
| Cutting Diameter (DC) | 20 mm | Corner Radius (RE) | 3 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Grade | IM206 AlCrNX |
| Depth of Cut Maximum (APMX) | 70 mm | Tool Type | Single End |
| Overall Length (OAL) | 135 mm | Body Material | Carbide |
| Flute Count (NOF) | 11 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 34 Degrees | Series/List # | IPC11-CR |
| Shank Type | Round | Shank Diameter Tolerance (TCDMM) | h6 |
| End Shape | Corner Radius |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
1.250
