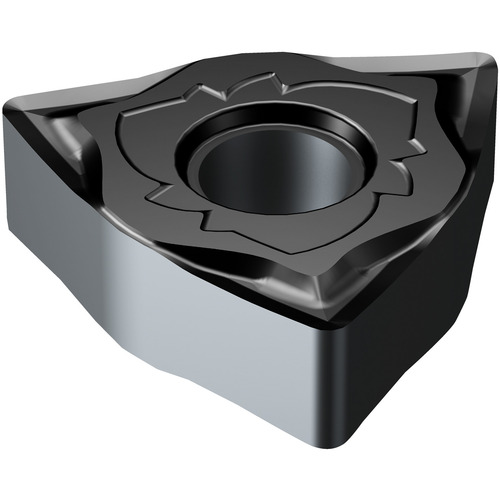

WNGG435SGF 1105 T-MAX P
Turning Insert; WNGG435SGF T-MAX P 1105 ; 8.69 mm Length ; 12.7 mm IC ; 0.2 mm Corner Radius ; Carbide ; Neutral ; TiAlN
| Applicable Material | | Hi-Temp Alloys|Stainless Steel|Steel|Non-Ferrous Material | | Coating | TiAlN |
| Insert Style | WNGG | Grade | 1105 |
| Corner Radius (RE) | 0.2 mm | Fixing Hole Diameter (D1) | 0.203″ |
| Insert Size | 43.5 | Tool Type | Turning Insert |
| Cutting Edge Length (L) | 8.69 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | SGF |
| Inscribed Circle Diameter (IC) | 12.7 mm | Shape | Trigon |
| Cutting Edge Material | Carbide | Model No | WNGG43.5-SGF |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.293
