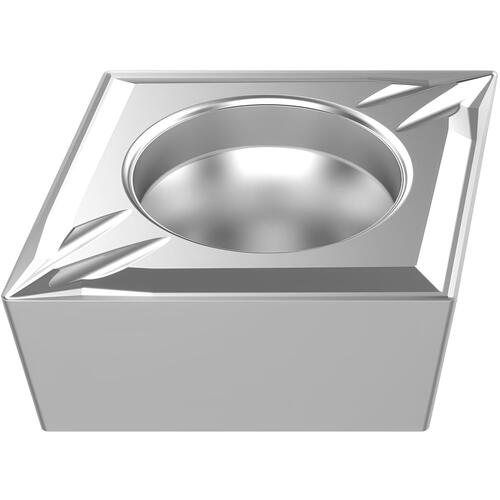

CCMT 32.51 MF2 TP3501, 0.4 mm Corner Radius, 3.97 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; CCMT32.51W-MF2 TP3501 ; 9.3 mm Length ; 9.525 mm IC ; 0.4 mm Corner Radius ; Neutral
| Applicable Material | Steel | Fixing Hole Diameter (D1) | 4.5 mm |
| Insert Style | CCMT | Tool Type | Turn Positive Insert |
| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32.51 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 9.3 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.97 mm | Chip Breaker Type | MF2 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Grade | TP3501 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
