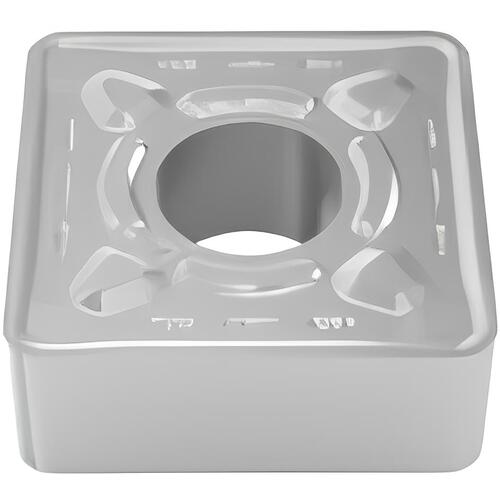

SNMG543-M6 TP3501 TURNING INSERT
Turning Insert; SNMG543-M6 TP3501 ; 14.7 mm Length ; 15.875 mm IC ; 1.2 mm Corner Radius ; Carbide ; Neutral
| Applicable Material | Steel | Grade | TP3501 |
| Insert Style | SNMG | Fixing Hole Diameter (D1) | 6.35 mm |
| Corner Radius (RE) | 1.2 mm | Tool Type | Turn Negative Insert |
| Insert Size | 543 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 14.7 mm | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 15.875 mm | Chip Breaker Type | M6 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.04
