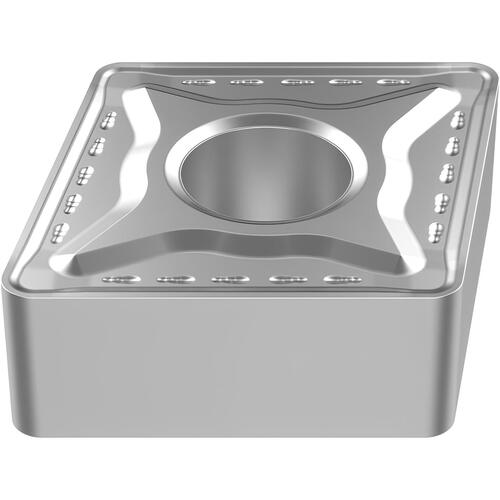

CNMG646-M6 TP3501 TURNING INSERT
Turning Insert; CNMG646-M6 TP3501 ; 16.9 mm Length ; 19.05 mm IC ; 2.4 mm Corner Radius ; Carbide ; Neutral
| Applicable Material | Steel | Grade | TP3501 |
| Insert Style | CNMG | Fixing Hole Diameter (D1) | 7.92 mm |
| Corner Radius (RE) | 2.4 mm | Tool Type | Turn Negative Insert |
| Insert Size | 646 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 16.9 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 19.05 mm | Chip Breaker Type | M6 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.057
