DCMT 3-1-FPC IC20N
Turning Insert; 55 Rhombic ; 0.457″ Length × 3/8″ IC × 0.0157″ Corner Radius ; IC20N ; Cermet ; Uncoated
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 55° Diamond 107.5° Appr. | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Min D.O.C. | 0.02″ |
| Insert Style | DCMT | Depth of Cut Maximum (APMX) | 0.106″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.00157 ″/rev |
| Insert Size | 3-1 | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Cutting Edge Length (L) | 0.457″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.156″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 55° Rhombic |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IC20N | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Model No | 8866423 |
Product Features
| Family Description | Single-sided 55° rhombic cermet grade inserts for semi-finishing and finishing applications on steel and cast iron. | Country of Origin | S.Korea |

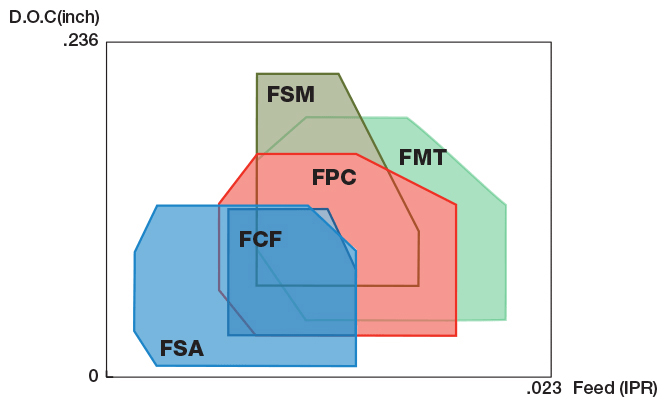

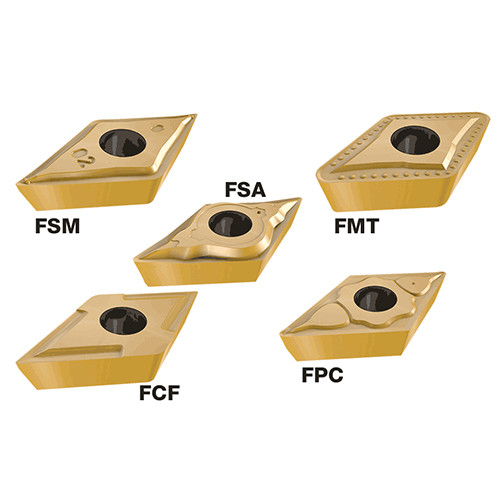

| Remarks | For chipformer selection guide of cermet inserts, and for dimensions and tolerances, click on More Info |
Shipping Info
Package Weight
0.007
