WNMG 431-FFC IC20N
Turning Insert; 80 Trigon ; 0.343″ Length × 1/2″ IC × 0.0157″ Corner Radius ; IC20N ; Cermet ; Uncoated
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.039″ |
| Application | | Ext. 80° Trigon 95° Approach | Insert | Int. 80° Trigon 95° Approach | | Depth of Cut Maximum (APMX) | 0.098″ |
| Insert Style | WNMG | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Size | 431 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.343″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 80° Trigon |
| Coating | Uncoated | Series/List # | ISOI |
| Grade | IC20N | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.1772″ | Model No | 8866423 |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Double-sided trigon cermet grade inserts for semi-finishing and finishing applications on steel and cast iron. | Country of Origin | S.Korea |

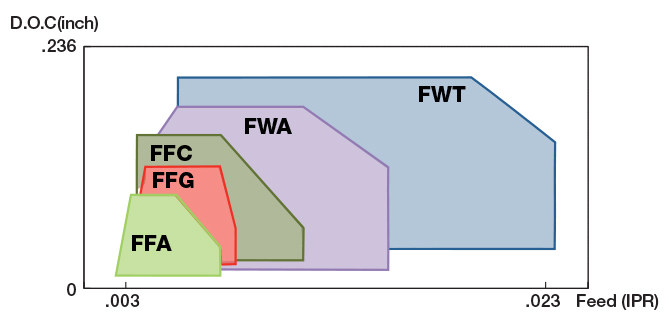

| Remarks | For chipformer selection guide of cermet inserts, and for dimensions and tolerances, click on "More Info" |
Shipping Info
Package Weight
0.007
