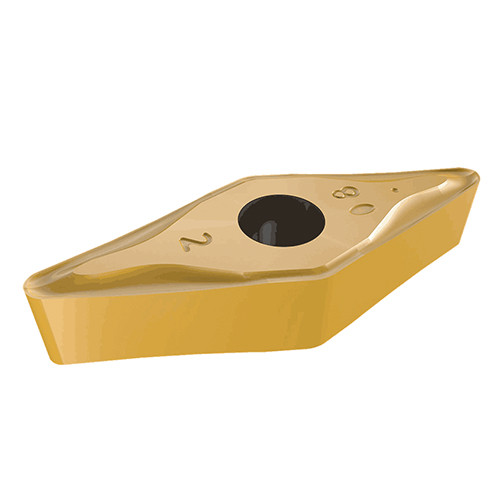

VNMG 2.5-1-FNF IC520N
Turning Insert; 35 Rhombic ; 0.488″ Length × 0.281″ IC × 0.0157″ Corner Radius ; IC520N ; Cermet ; TiCN+TiN
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Min D.O.C. | 0.02″ |
| Insert Style | VNMG | Depth of Cut Maximum (APMX) | 0.118″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.00275 ″/rev |
| Insert Size | 2.5 | Max. Turning Feed (ft(max)) | 0.00905 ″/rev |
| Cutting Edge Length (L) | 0.488″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 0.157″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 0.281″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Cermet | Shape | 35° Rhombic |
| Coating | TiCN+TiN | Series/List # | ISOI |
| Grade | IC520N | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.139″ | Model No | 8866423 |
Product Features
| Family Description | Double-sided 35° rhombic inserts used for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake. | Country of Origin | S.Korea |
| Remarks | For chipformer selection guide of cermet inserts, and for dimensions and tolerances, click on More Info |
Shipping Info
Package Weight
0.007
