QC95MT 100504-SM IC830

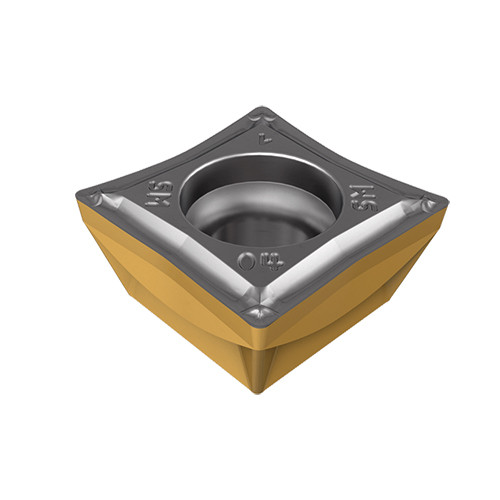

Turning Insert; Square ; 0.409″ Length × 0.38″ IC × 0.0157″ Corner Radius ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.02″ |
| Application | | Ext. 80° Q#MG 95° Approach | Int. 80° Q#MG 95° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | QC95 | Min. Turning Feed (ft(min)) | 0.00314 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Size | MT 1 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.409″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.197″ | Chip Breaker Type | SM |
| Inscribed Circle Diameter (IC) | 0.38″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | AlTiN+TiN | Series/List # | ISOI |
| Grade | IC830 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.177″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | 7° clearance insert with four 80° corners used for finishing applications (part of the CHAMELEON multifunction system). | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.012
