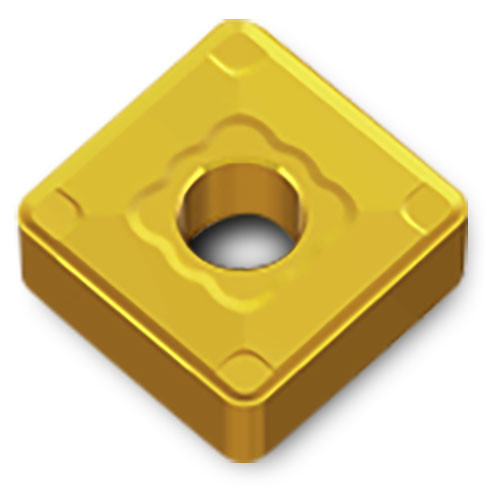

SNMM866EH TT9225
Turning Insert; 60 Triangle ; 0.656″ Length × 3/4″ IC × 0.094″ Corner Radius ; TT9225 ; Carbide ; TiCN+Al2O3+TiN
| Insert Style | SNMM | Depth of Cut Maximum (APMX) | 0.709″ |
| Corner Radius (RE) | 0.094″ | Min. Turning Feed (ft(min)) | 0.018″ |
| Insert Size | 866 | Max. Turning Feed (ft(max)) | 0.047″ |
| Cutting Edge Length (L) | 0.656″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiCN+Al2O3+TiN | Series/List # | ISOI |
| Grade | TT9225 | Body Material | Carbide |
| Min D.O.C. | 0.11″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.183
