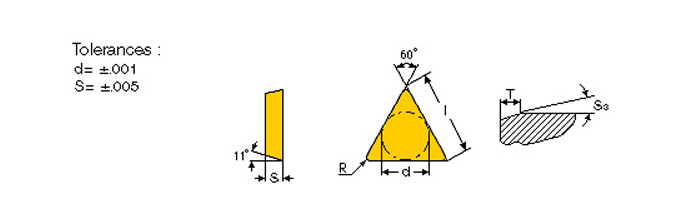

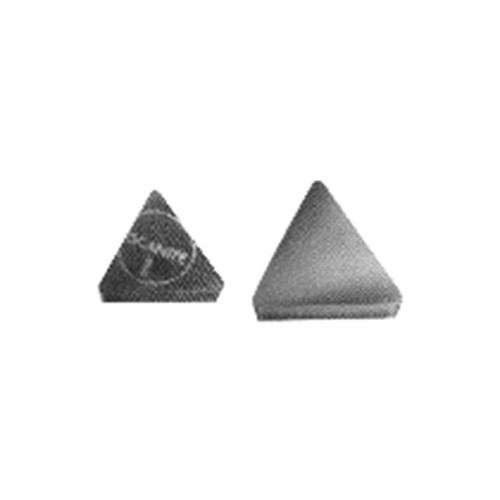

TPG 322 IC20
Turning Insert; 60 Triangle ; 0.65″ Length × 3/8″ IC × 1/64″ Corner Radius ; IC20 ; Carbide ; Uncoated
| Applicable Material | Stainless Steel|Cast Iron|Non-Ferrous Metals|Hi-Temp Alloys| | Grade | IC20 |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Fixing Hole Diameter (D1) | 0.1772″ |
| Insert Style | TPG | Tool Type | Turn Positive Insert |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 322 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 0.65″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 1/8″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | Uncoated | Model No | 8866423 |
Product Features
| Family Description | Single-sided, ground all over without chipformer. Positive cut, low cutting forces. Suited to short chipping materials. | Country of Origin | Israel |
Shipping Info
Package Weight
0.013
