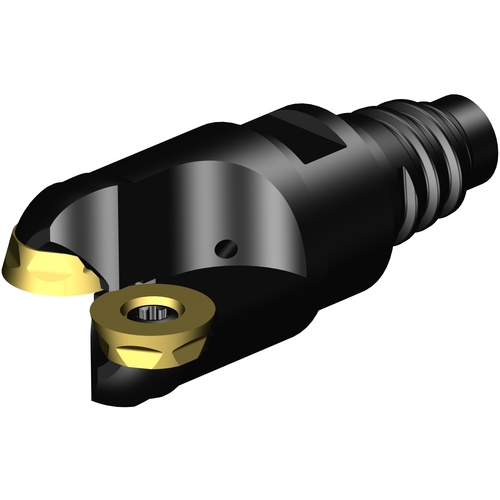

R300-24EH20-12L CM300 PROFILE CUTTER
Indexable End Mill; 12 mm Dia. × 6 mm LOC × 19.3 mm Shank Dia. × 54.5 mm OAL ; Threaded Shank
| Cutting Diameter (DC/DCX) | 12 mm | Connection Diameter Machine Side (DCONMS) | 19.3 mm |
| Cutting Diameter (DC) | 12 mm | Head Length (LH) | 25 mm |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 54.5 mm | Model Number | R300-24EH20-12L |
| Shank Type | Threaded |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.364
