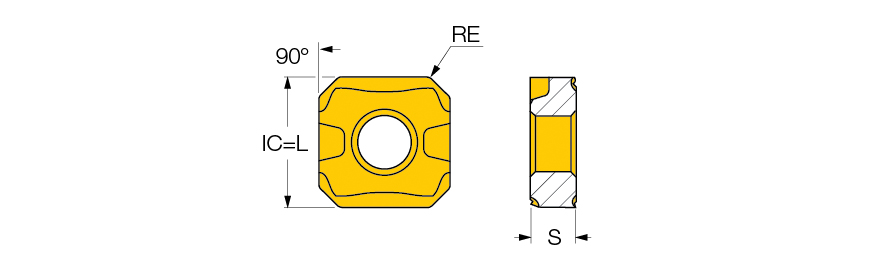

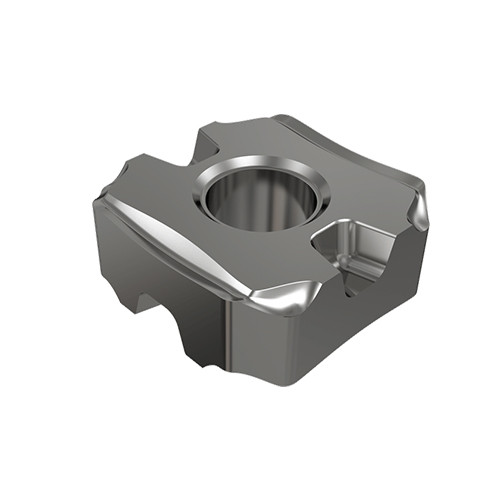

SNMG 432-EM-M IC806
Turning Insert; Square ; 1/2″ Length × 1/2″ IC × 0.0315″ Corner Radius ; IC806 ; Carbide ; AlTiN "SUMO TEC"
| Applicable Material | | Super-Alloys / Titanium | | Min D.O.C. | 0.039″ |
| Application | | Ext. 90°Square 45°Face&Turn Ap | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | SNMG | Min. Turning Feed (ft(min)) | 0.00787 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.01574 ″/rev |
| Insert Size | 432 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 1/2″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | EMM |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | AlTiN "SUMO TEC" | Series/List # | ISOI |
| Grade | IC806 | Body Material | Carbide |
| Tool Type | Turn Inserts AL, HTA Geometric | Model No | 8866423 |
Product Features
| Family Description | Double-sided Square inserts with 4 cutting edges (2 on each side) and truncated radii which facilitate heat transfer. Sharp cutting edge with a positive 16° chipformer rake angle. Used for machining high temperature alloys at ap<3 mm. | Country of Origin | Israel |
| Remarks | Requires the use of RST 443R/L SET - seat when used on DSSNR/L tools and TSN 423-PIN SET seat when used on PSSNR/L-JHP and PSDNN-JHP tools For operating instructions, click on More Info |
Shipping Info
Package Weight
0.022
