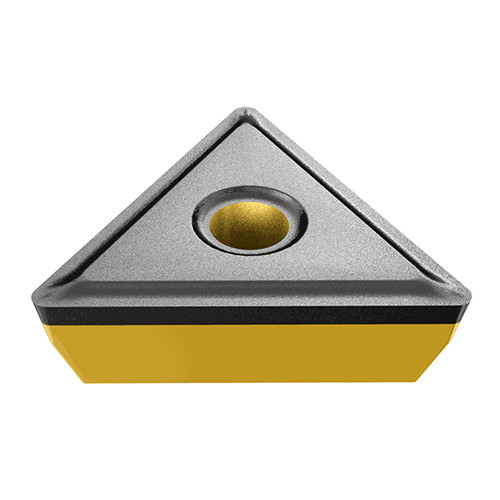

TPMR 730 IC907

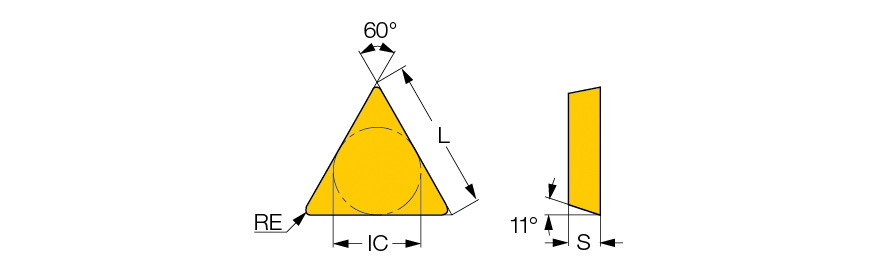

Turning Insert; 60 Triangle ; 0.378″ Length × 0.219″ IC × 0.0079″ Corner Radius ; IC907 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.039″ |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | TPMR | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Corner Radius (RE) | 0.0079″ | Max. Turning Feed (ft(max)) | 0.00787 ″/rev |
| Insert Size | 730 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.378″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.094″ | Chip Breaker Type | R |
| Inscribed Circle Diameter (IC) | 0.219″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiAlN | Series/List # | ISOI |
| Grade | IC907 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features
| Family Description | 11° positive triangular inserts. Positive chipformer, low cutting forces. Used for internal turning and for finishing | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, , click on More Info |
Shipping Info
Package Weight
0.005
