| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90°Square 45°Face&Turn Ap | | Min D.O.C. | 0.157″ |

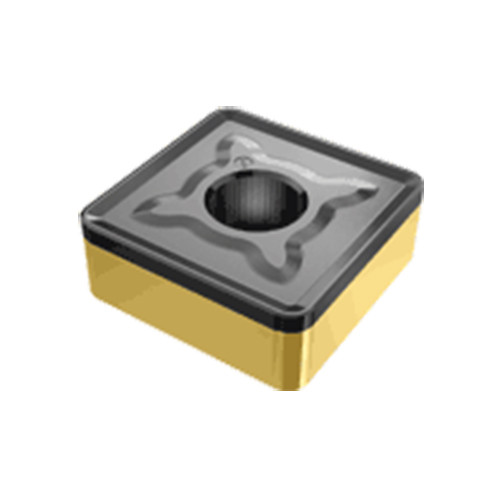

| Insert Style | SNMM | Depth of Cut Maximum (APMX) | 0.472″ |

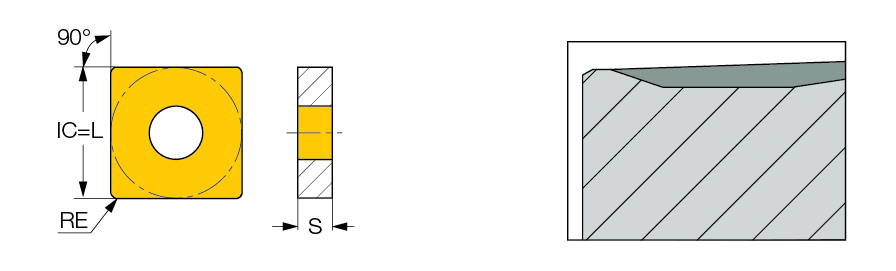

| Corner Radius (RE) | 0.0945″ | Min. Turning Feed (ft(min)) | 0.0197 ″/rev |
| Insert Size | 646 | Max. Turning Feed (ft(max)) | 0.0433 ″/rev |
| Cutting Edge Length (L) | 3/4″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/4″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/4″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | ISOI |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 | Model No | 8866423 |
| Fixing Hole Diameter (D1) | 0.313″ |
Product Features
| Family Description | Used for extra rough turning in the windmill and shipbuilding industries. Excellent performance on tower flange, main shaft and swing bearing for wind turbines made from low carbon steel. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.028
