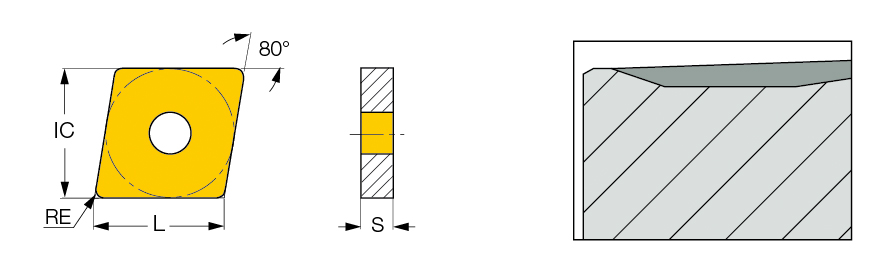

| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.157″ |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.472″ |
| Insert Style | CNMM | Min. Turning Feed (ft(min)) | 0.0197 ″/rev |
| Corner Radius (RE) | 0.0945″ | Max. Turning Feed (ft(max)) | 0.0433 ″/rev |
| Insert Size | 646 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.761″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/4″ | Chip Breaker Type | H4P |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Shape | 80° Rhombic |
| Grade | IC8250 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.313″ | Body Material | Carbide |

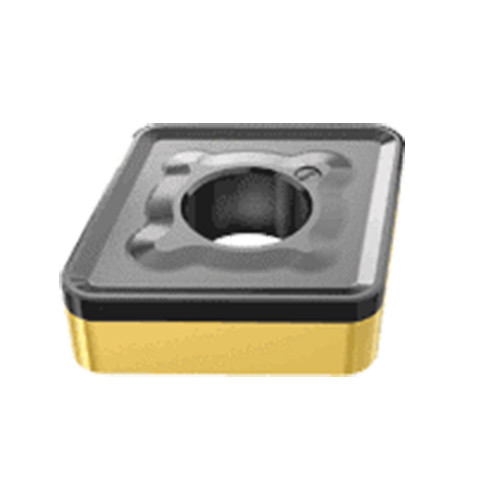

| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Used for extra rough turning in the windmill and shipbuilding industries. Excellent performance on tower flange, main shaft and swing bearing for wind turbines made from low carbon steel. | Country of Origin | Korea |
| Remarks | For dimensions and tolerances, see more info. |
