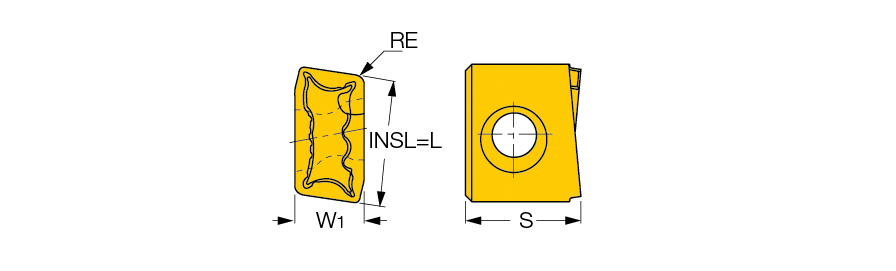

LNMX 1608R-HF IC3028
| Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys| | Tool Type | Turn Negative Insert |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Min D.O.C. | 0.02″ |
| Insert Style | LNMX | Depth of Cut Maximum (APMX) | 0.094″ |
| Corner Radius (RE) | 0.047″ | Max. Turning Feed (ft(max)) | 0.0945 inch/rev |
| Insert Size | 1608 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.63″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.551″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Rectangle |
| Coating | TiCN | Series/List # | ISOI |
| Grade | IC3028 | Model No | 8866423 |
| Fixing Hole Diameter (D1) | 0.1772″ |
Product Features
| Family Description | A high feed (up to .094 ipr) tangentially clamped rough turning insert. | Country of Origin | Israel |
Shipping Info
Package Weight
.0447
