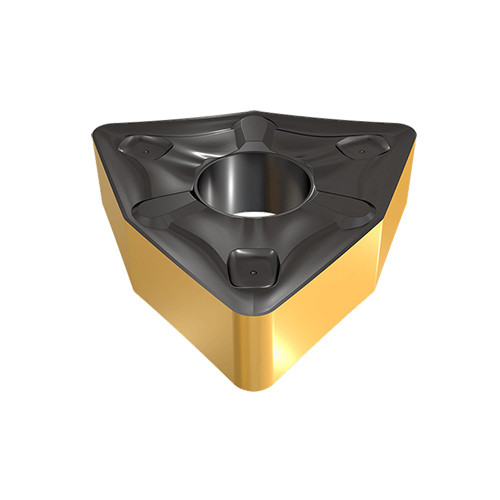

WNMG 644-TNM IC9350

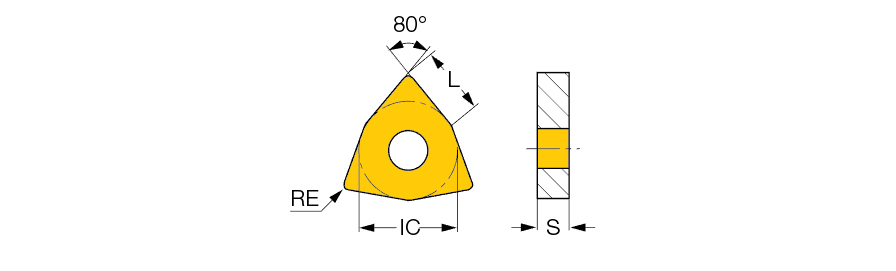

Turning Insert; 80 Trigon ; 0.513″ Length × 3/4″ IC × 0.063″ Corner Radius ; IC9350 ; Carbide ; TiCN+alpha Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.098″ |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Depth of Cut Maximum (APMX) | 0.276″ |
| Insert Style | WNMG | Min. Turning Feed (ft(min)) | 0.0098 ″/rev |
| Corner Radius (RE) | 0.063″ | Max. Turning Feed (ft(max)) | 0.0256 ″/rev |
| Insert Size | 644 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.513″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | TNM |
| Inscribed Circle Diameter (IC) | 3/4″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | TiCN+alpha Al2O3+TiN | Series/List # | ISOI |
| Grade | IC9350 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided trigon inserts used for semi-roughing and roughing applications. A special seat enables using both insert sides. Three times more cutting edges compared to an equivalent-sized rhombic insert. | Country of Origin | Israel |
| Remarks | This inserts should be used with SEAT IWSN 635M3 for insert size 64# and SEAT IWSN 433M for insert size 43# For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.060
