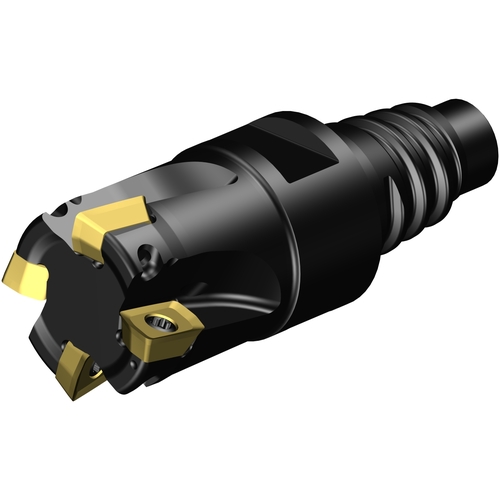

R390-016EH16-07H COROMILL 390
Indexable End Mill; 16 mm Dia. × 5.8 mm LOC × 15.5 mm Shank Dia. × 42 mm OAL ; Threaded Shank
| Cutting Diameter (DC/DCX) | 16 mm | Connection Diameter Machine Side (DCONMS) | 15.5 mm |
| Cutting Diameter (DC) | 16 mm | Head Length (LH) | 15.7 mm |
| Cutting Item Count (CICT) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 5.8 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 42 mm | Model Number | R390-016EH16-07H |
| Shank Type | Threaded |
Product Features
| Country of Origin | SWEDEN |
Shipping Info
Package Weight
.309
