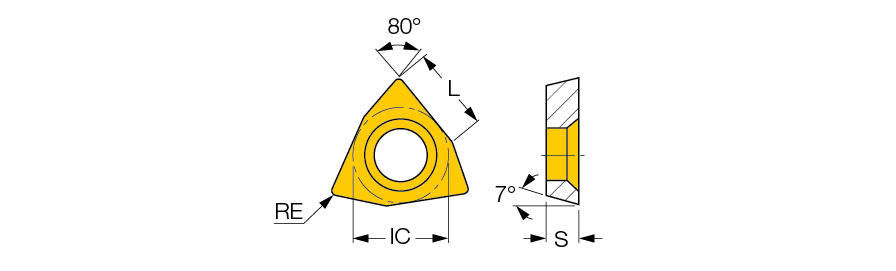

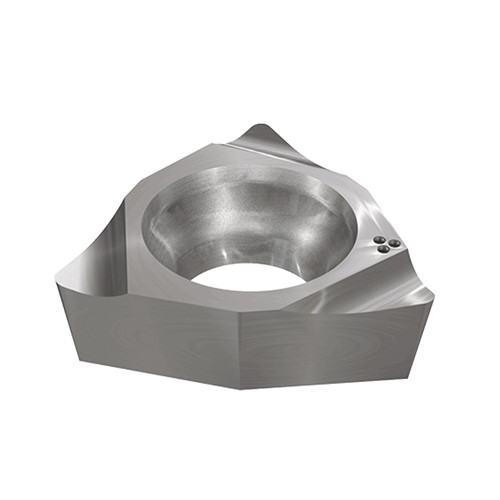

WCGT 020104L IC908
Turning Insert; 80 Trigon ; 0.086″ Length × 0.156″ IC × 0.0157″ Corner Radius ; IC908 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.016″ |
| Application | | Int. 80° Trigon 93° Approach | Int. 80° Trigon 95° Approach | | Depth of Cut Maximum (APMX) | 0.079″ |
| Insert Style | WCGT | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Size | 020 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.086″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.063″ | Chip Breaker Type | T |
| Inscribed Circle Diameter (IC) | 0.156″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | TiAlN | Series/List # | ISOI |
| Grade | IC908 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features
| Family Description | Trigon 7° positive flank inserts with a chipformer. Used for finishing on miniature boring bars, provide excellent surface finish. Suitable for a wide range of materials. . | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Length
3.75000
Package Width
1.75000
Package Height
.50000
Package Weight
0.003
