| Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys| | Tool Type | Turn Negative Insert |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Min D.O.C. | 0.039″ |
| Insert Style | DNMG | Depth of Cut Maximum (APMX) | 0.138″ |
| Corner Radius (RE) | 0.031″ | Max. Turning Feed (ft(max)) | 0.0118 inch/rev |
| Insert Size | 442 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.61″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 55° Rhombic |
| Coating | TiCN | Series/List # | ISOI |
| Grade | IC3028 | Model No | 8866423 |
| Fixing Hole Diameter (D1) | 0.1772″ |
Product Features

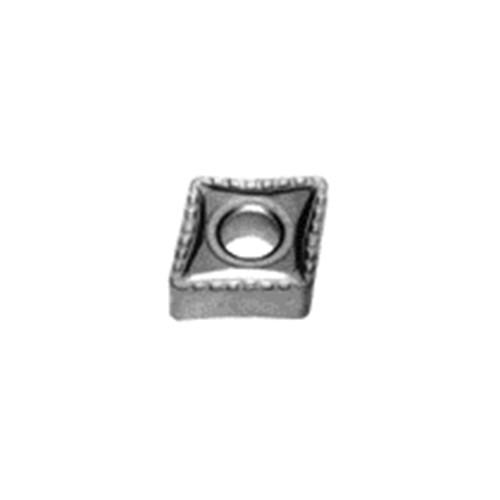

| Family Description | Double-sided, 55° rhombic insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
.0400
