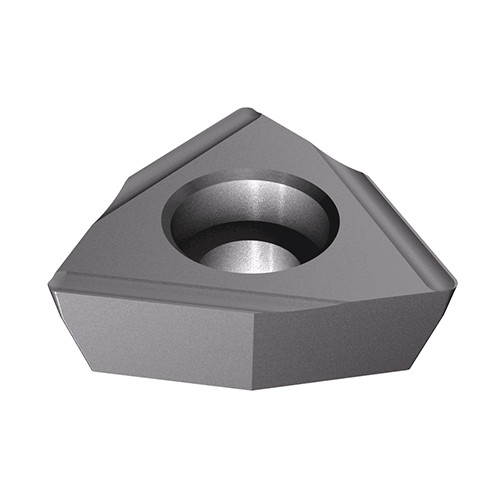

WPEX 050304R08 IC08
Turning Insert; 80 Trigon ; 0.197″ Length × 0.313″ IC × 0.0157″ Corner Radius ; IC08 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.008″ |
| Application | | Ext. Positive Trigon 45°Approa | Ext. Positive Trigon 60°Approa | Ext. Positive Trigon 90°Approa | | Depth of Cut Maximum (APMX) | 0.098″ |
| Insert Style | WPEX | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |

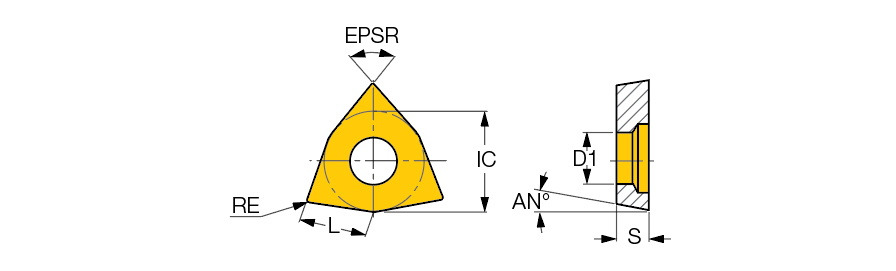

| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.00787 ″/rev |
| Insert Size | 050 | Clearance Angle Major (AN) | 8 Degrees |
| Cutting Edge Length (L) | 0.197″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 0.313″ | Chip Breaker Type | X |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Shape | 80° Trigon |
| Grade | IC08 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.146″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features
| Family Description | Precision positive 8° and 12° clearance, 80° and 84° trigon inserts with a chipformer for finishing applications on Swiss automatics. | Country of Origin | Switzerland |
| Remarks | For tolerances, see more info. |
Shipping Info
Package Weight
0.007
Related Documentation
1.Single-sided, ground and polised for precision machining. 2.Specil chipformer for finishing excellent surface finish. 3.Eliminates built-up edge. 4.R-right-hand turning. 5.L-left-hand turning.
