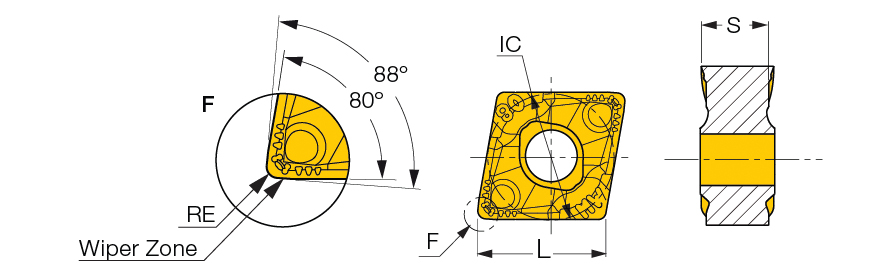

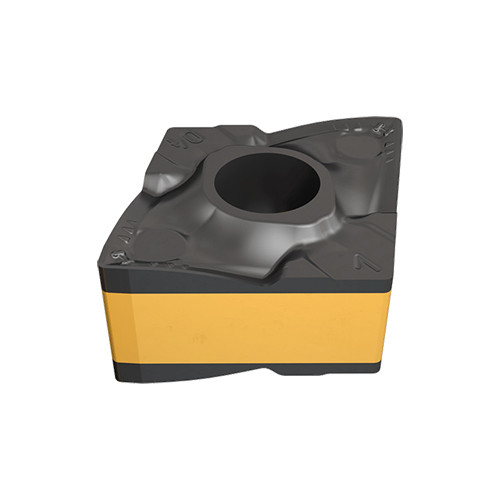

CNMX 452-M4MW IC8150
Turning Insert; 80 Rhombic ; 0.508″ Length × 1/2″ IC × 0.0315″ Corner Radius ; IC8150 ; Carbide ; TiCN+Al2O3+TiCN+TiN
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.039″ |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.236″ |
| Insert Style | CNMX | Min. Turning Feed (ft(min)) | 0.00787 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.02362 ″/rev |
| Insert Size | 452 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.508″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.267″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | HMW |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiCN+TiN | Shape | 80° Rhombic |
| Grade | IC8150 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.203″ | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | The inserts feature a very positive radial helical cutting edge and a positive rake angle, which reduces the cutting forces. A wiper corner design produces high surface finish even at high feed rates. Used for heavy machining applications. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. PCLNR/L...X and A..-PCLNR/L-X are most recommended as they were designed especially for this insert. |
Shipping Info
Package Weight
0.03
