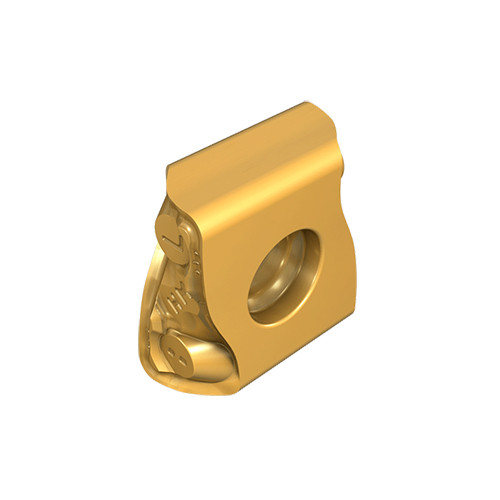

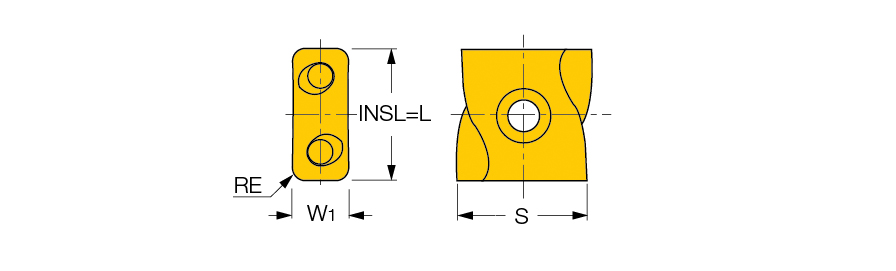

LNMX 150612R-HM IC907
Turning Insert; Rectangle ; 0.591″ Length × 0.0472″ Corner Radius ; IC907 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Depth of Cut Maximum (APMX) | 0.276″ |
| Application | | Ext. Tangential 93° Approach | Ext. Tangential 93°Face Approa | Int. Tangential 93° Approach | | Min. Turning Feed (ft(min)) | 0.0059 ″/rev |
| Insert Style | LNMX | Max. Turning Feed (ft(max)) | 0.02755 ″/rev |
| Corner Radius (RE) | 0.0472″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 150 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 0.591″ | Cutting Direction (HAND) | Right Hand |

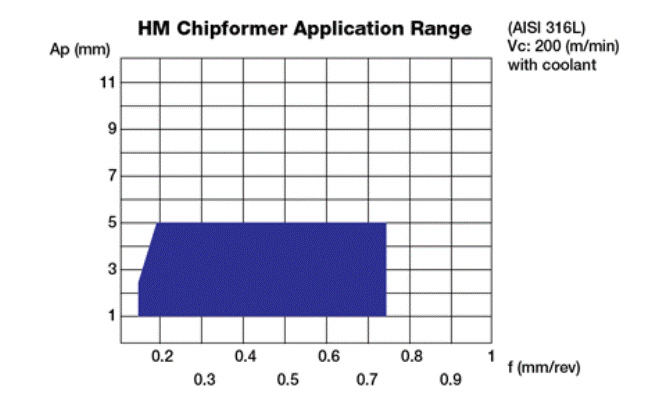

| Insert Thickness (S) | 0.528″ | Chip Breaker Type | HM |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Shape | Rectangle |
| Grade | IC907 | Series/List # | ISOI |
| Tool Type | Turn Negative Inserts | Body Material | Carbide |
| Min D.O.C. | 0.059″ | Model No | 8866423 |
Product Features
| Family Description | Tangential inserts with 4 cutting edges and a positive rake angle. Recommended for high machining rates on stainless steel, high temperature alloys and soft, low carbon steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.033
