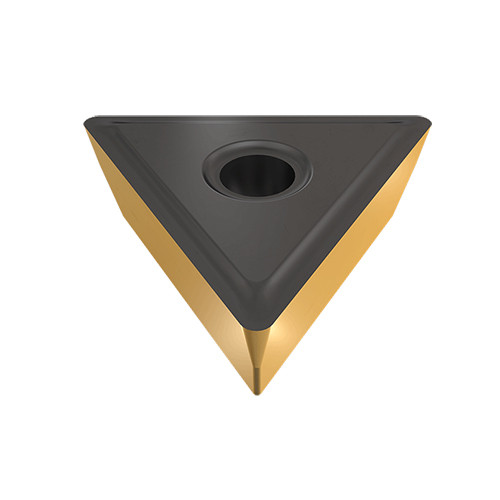

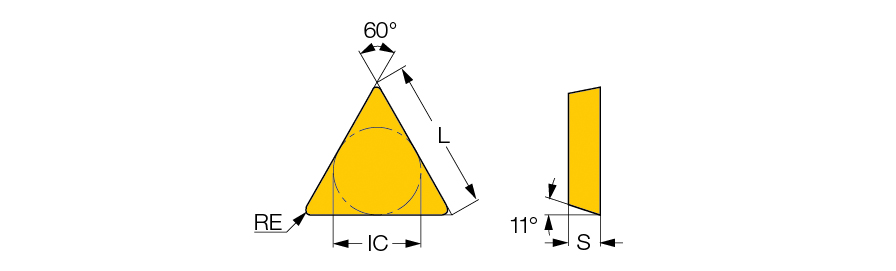

TPMR 322-PF IC907
Turning Insert; 60 Triangle ; 0.65″ Length × 3/8″ IC × 0.0315″ Corner Radius ; IC907 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.031″ |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | TPMR | Min. Turning Feed (ft(min)) | 0.00314 ″/rev |
| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.01102 ″/rev |
| Insert Size | 322 | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.65″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | PF |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiAlN | Series/List # | ISOI |
| Grade | IC907 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Model No | 8866423 |
Product Features
| Family Description | Triangular 11° positive flank insert with a positive chipformer for semi-finishing and finishing. Low cutting forces, especially suitable for internal turning. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
0.013
