| Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys| | Tool Type | Turn Negative Insert |
| Application | Back Boring | Boring | Copying | External Turning | Internal Facing | Min D.O.C. | 0.039″ |

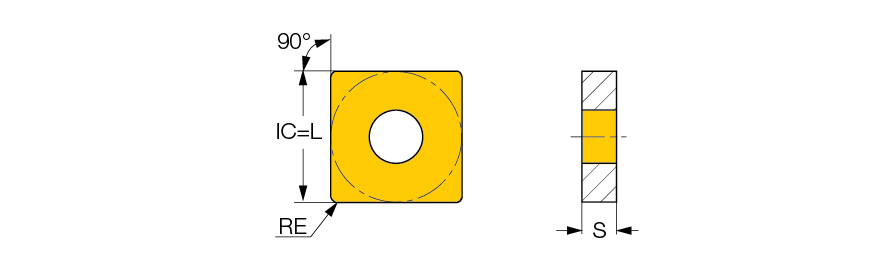

| Insert Style | SNMG | Depth of Cut Maximum (APMX) | 0.157″ |
| Corner Radius (RE) | 0.031″ | Max. Turning Feed (ft(max)) | 0.0118 inch/rev |
| Insert Size | 432 | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 0.187″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN | Shape | Square |
| Grade | IC3028 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.1772″ | Model No | 8866423 |
Product Features
| Family Description | Double-sided square inserts with a positive rake angle and sharp, positive-radial edge. Used for machining very ductile materials such as aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Length
.50000
Package Width
.50000
Package Height
.10000
Package Weight
0.02
