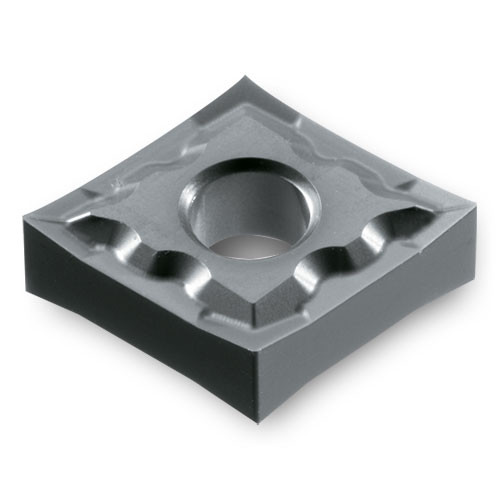

CNGG432ML K10

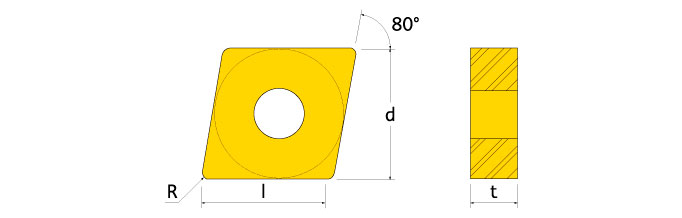

Turning Insert; 60 Triangle ; 0.508″ Length × 1/2″ IC × 0.031″ Corner Radius ; K10
| Insert Style | CNGG | Min. Turning Feed (ft(min)) | 0.005″ |
| Corner Radius (RE) | 0.031″ | Max. Turning Feed (ft(max)) | 0.014″ |
| Insert Size | 432 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 0.508″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 60° Triangle |
| Grade | K10 | Series/List # | CNMG 432-ML |
| Min D.O.C. | 0.039″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.138″ | Model No | 8866423 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
.74000
Package Width
.62000
Package Height
.19000
Package Weight
0.022
