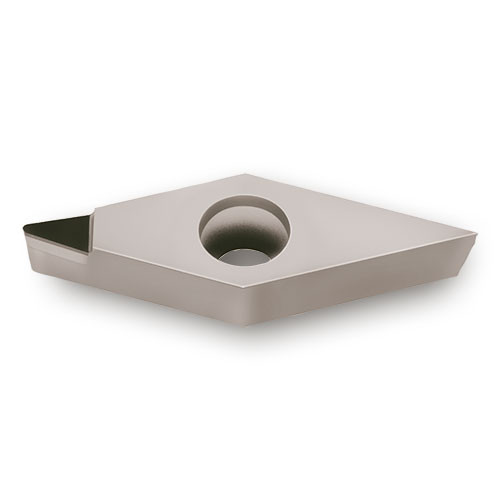

VBGW330.5LN-7 KP300
Turning Insert; 60 Triangle ; 0.654″ Length × 3/8″ IC × 0.008″ Corner Radius ; KP300 ; PCD
| Insert Style | VBGW | Min. Turning Feed (ft(min)) | 0.002″ |
| Corner Radius (RE) | 0.008″ | Max. Turning Feed (ft(max)) | 0.012″ |
| Insert Size | 330.5 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.654″ | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 35 Degrees | Measurement Type | Inch |
| Cutting Edge Material | PCD | Shape | 60° Triangle |
| Grade | KP300 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
| Min D.O.C. | 0.004″ | Cutting Edge Effective Length (LE) | 0.205″ |
| Depth of Cut Maximum (APMX) | 0.079″ | Model No | 8866423 |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.035
